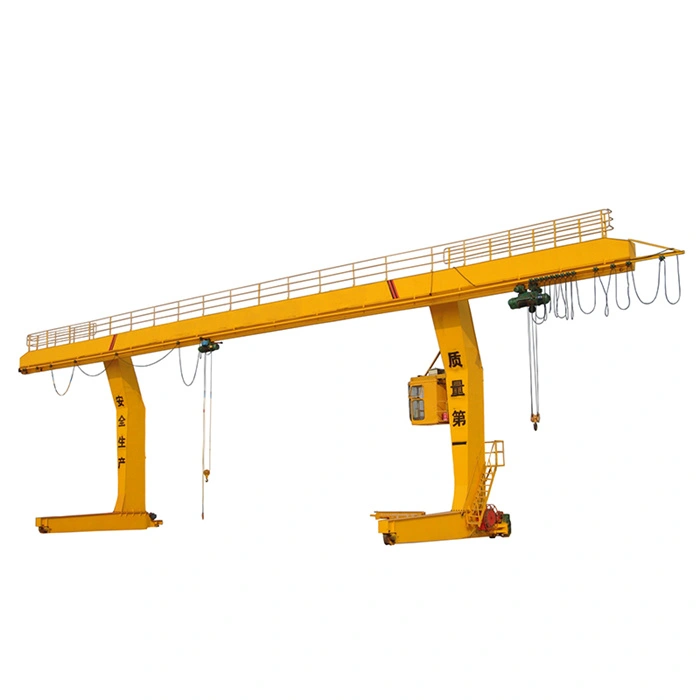

The L-Type Single Girder Gantry Crane is engineered with a box-type main girder and an innovative L-shaped leg design. This configuration enhances stability and offers exceptional performance for specialized material handling. Its structure integrates four core components: the bridge frame, L-type supporting legs, an electric trolley, and the crane’s traveling mechanism, alongside fully integrated electrical systems. Operation is versatile, with options for cabin control, remote control, or pendant line operation. Ideal for transporting steel ladles, lengthy tubes, and other elongated materials, the unique L-shape design facilitates smooth trolley movement and simplifies the safe turning of goods.
Features:
Robust and space-efficient structure for reliable operation.
Straightforward installation process and high operational efficiency.
Built-in safety mechanisms including overload and low-voltage protection.
Flexible control via pendant or remote options.
Low maintenance requirements for reduced downtime.
Specifications:
Lifting Capacity: 5 to 10 tons
Span Range: 16 to 28 meters
Lifting Height: 6 m / 9 m
Duty Cycle: A5
Operating Temperature: -20°C to +50°C

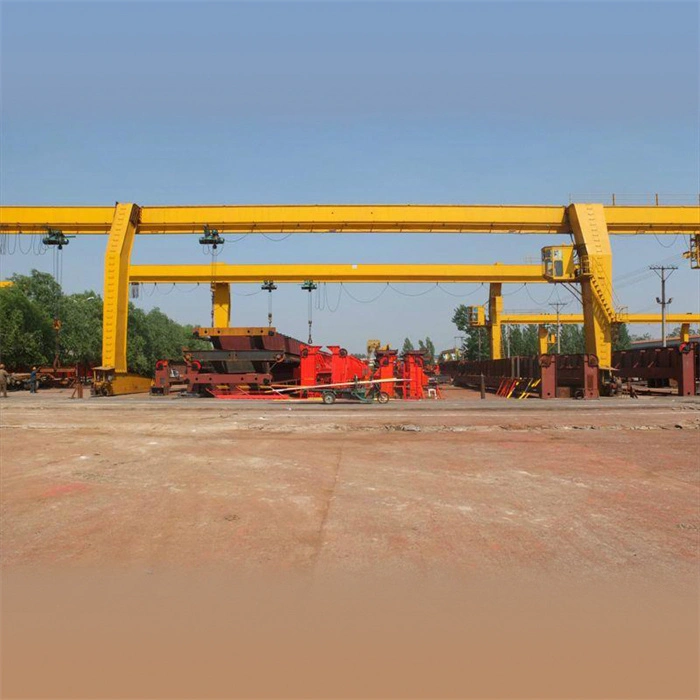

The L-Type Single Girder Gantry Crane with hoist delivers versatile material handling solutions for both outdoor and indoor applications. It efficiently serves various operational areas including storage warehouses, stockyards, railway terminals, and seaport cargo zones.
This crane model features a box-type single girder design supported by L-shaped legs, creating a stable framework for heavy-duty operations. The complete system incorporates four integrated components: the bridge structure, L-style supports, an electric trolley mechanism, and the travel system, all coordinated through advanced electrical controls. Operators can choose between cabin, remote, or pendant control methods based on operational requirements.
Specifically engineered for managing steel ladles, industrial tubes, and extended-length materials, the distinctive L-configuration enables unobstructed trolley movement and facilitates secure cargo rotation maneuvers.
As an adapted version of overhead bridge cranes, gantry cranes excel in outdoor cargo handling environments. They maximize space utilization while offering extensive coverage across work areas. Their design demonstrates remarkable adaptability across different industrial settings, making them particularly valuable for port logistics and bulk material management.

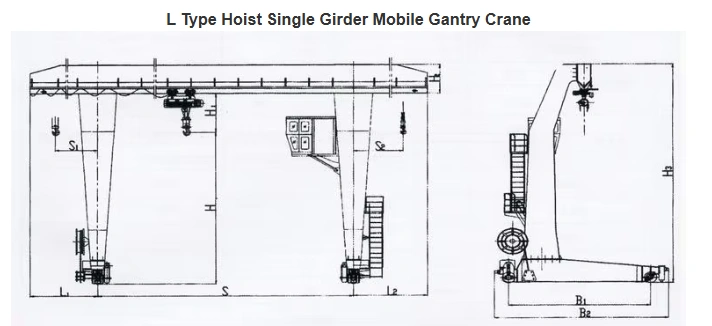

The structural framework resembles a gate-like formation, where the load-bearing girder is supported by two legs moving along ground-mounted tracks. The main beam may incorporate extended cantilever sections at both ends to enhance operational reach and flexibility.
Key Advantages:
Adaptable to diverse environments from warehouses to outdoor yards
Enhanced stability through L-leg structural design
Flexible control options for optimized workflow
Superior handling for lengthy and bulky materials
Increased site utilization with customizable span options
