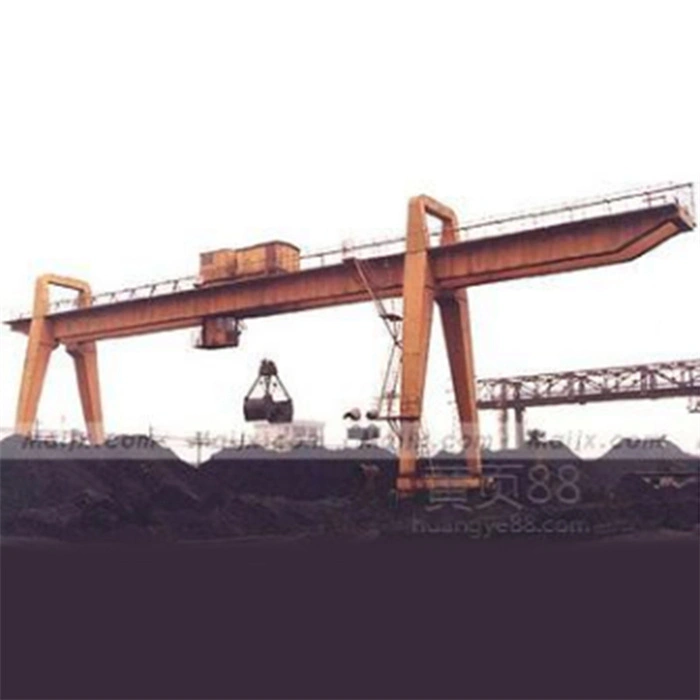

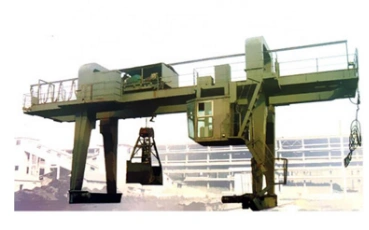

Engineered for demanding outdoor applications, our Double Girder Grab Bucket Gantry Crane delivers robust performance in open-air storage yards and alongside railway tracks. Its operation is highly flexible, supporting control from a secure driver's cab or via convenient ground-based systems. The crane's distinctive "A"-frame structural design ensures superior stability and load-bearing capacity. With a typical span range of 18 to 35 meters, this mobile rail crane is perfectly suited for material handling tasks in the outdoor yards and workshops of metallurgical, cement, and chemical processing plants. It efficiently transports a wide array of bulk materials, including ore, limestone, coal, sand, and other granular substances, across fixed indoor or outdoor spans.
The integrated grab bucket mechanism is specifically designed for handling loosely piled, non-compacted bulk solids. For specialized operations involving underwater materials or other unique substances, please provide detailed specifications at the time of ordering. Furthermore, we offer comprehensive waterproofing kits to ensure reliable, all-weather operation when the crane is deployed in exposed outdoor environments.
A Double Girder Grab Bucket Gantry Crane is a robust and versatile overhead lifting solution engineered for the high-efficiency handling of bulk materials. Unlike standard cranes, it is equipped with a specialized grab bucket that acts as an integrated loading and unloading tool, eliminating the need for manual labor and significantly accelerating operations. This crane is an essential asset for industries requiring rapid movement of loose materials such as coal, ore, sand, grain, scrap, and timber.
Our models are available in 5-ton and 10-ton capacities, built on a reliable double-girder design for superior strength, stability, and lifting performance over long spans.
Key Features & Benefits
High Productivity: The motorized grab bucket opens and closes seamlessly, allowing a single operator (via cabin or remote control) to grab, lift, transport, and dump materials in one continuous cycle. This automation drastically reduces cycle times and labor costs.
Durability & Stability: The double girder construction provides exceptional structural integrity, capable of supporting heavy loads and the dynamic forces of the grab operation across spans up to 35 meters. This ensures long-term reliability even in demanding, 24/7 environments.
Precision & Control: Equipped with powerful and responsive hoisting and travel motors (YZR series), the crane offers smooth acceleration and precise load positioning. Dual-speed options on long travel allow for careful maneuvering when needed.
Operational Flexibility: Designed for both indoor and outdoor applications, it is ideal for fixed material yards, storage areas, ports, and logistics hubs. The ±10 meter lifting height provides ample clearance for loading/unloading from trucks, railcars, or stockpiles.
Safety & Reliability: Built with industrial-grade components and fail-safe braking systems. The clear separation of the operator from the load area enhances job site safety.

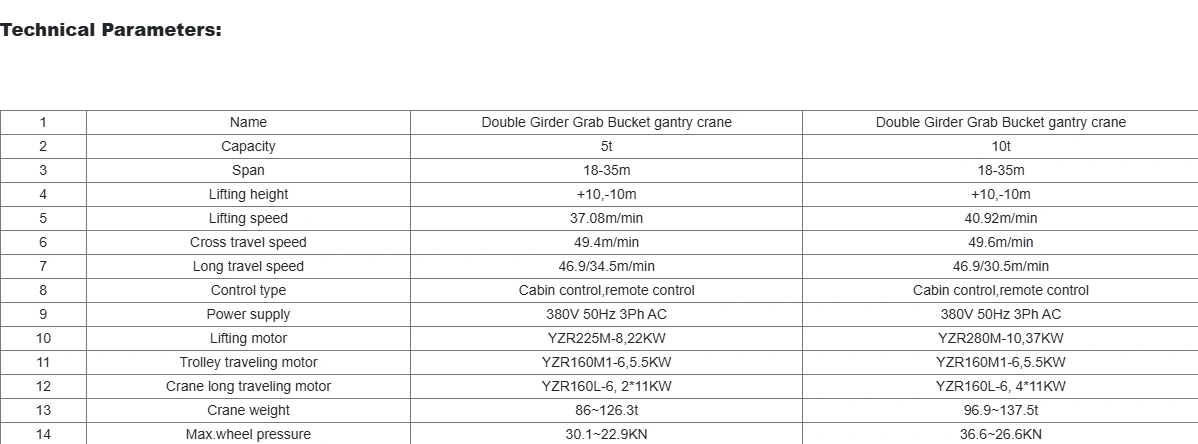

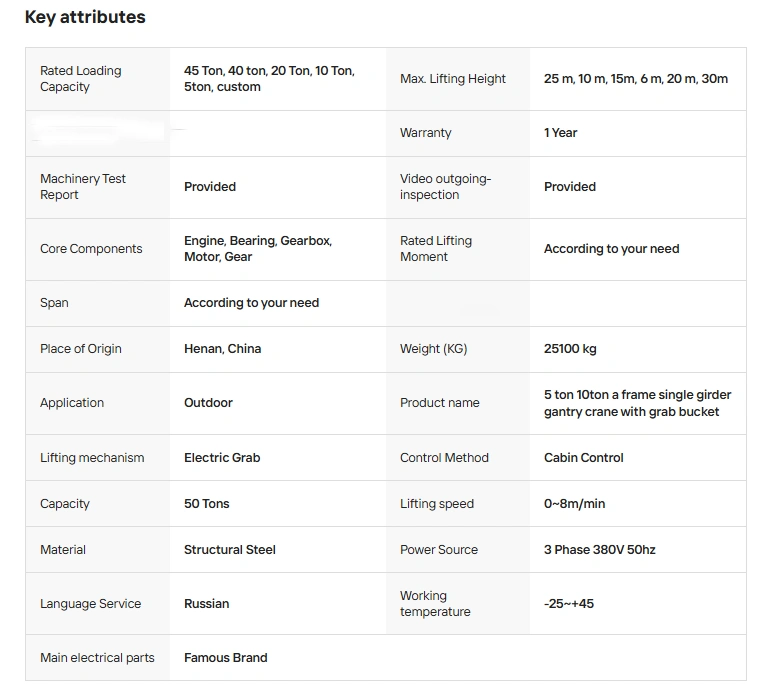

| Parameter | Specification |
|---|---|
| Name | Double Girder Grab Bucket Gantry Crane |
| Capacity | 5t / 10t |
| Span & Lifting Height | Span: 18-35m, Lifting Height: ±10m |
| Lifting Speed | 37.08 m/min (5t) / 40.92 m/min (10t) |
| Trolley Travel Speed | 49.4 m/min (5t) / 49.6 m/min (10t) |
| Crane Long Travel Speed | 46.9 / 34.5 m/min (5t) / 46.9 / 30.5 m/min (10t) |
| Control Type | Cabin control, Remote control |
| Power Supply | 380V 50Hz 3Ph AC |
| Hoisting Motor | YZR225M-8, 22KW (5t) / YZR280M-10, 37KW (10t) |
| Trolley Travel Motor | YZR160M1-6, 5.5KW |
| Crane Long Travel Motor | YZR160L-6, 2*11KW (5t) / 4*11KW (10t) |
| Crane Weight | 86 ~ 126.3 t (5t) / 96.9 ~ 137.5 t (10t) |
| Max. Wheel Load | 30.1 ~ 22.9 KN (5t) / 36.6 ~ 26.6 KN (10t) |

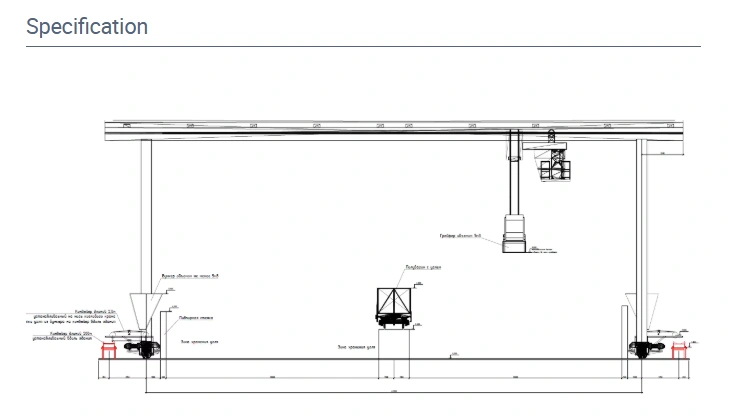

Mechanical Components:
Main Girder: Constructed with a double welded box or trussed design, engineered to meet rigorous DIN/FEM standards for minimal beam deflection.
Steel Structure: Fabricated from high-grade steel including Q235B, Q345B, or Q355E, ensuring structural integrity.
Trolley Rail: Utilizes durable, high-strength hot-rolled flat steel (16 Mn) for extended service life under heavy loads.
Surface Protection: A triple-layer epoxy zinc-rich paint system (120μm total) provides exceptional corrosion resistance, maintaining a durable and visually appealing finish.
End Carriages: Feature anti-friction bearings, double rim wheels, buffer blocks, and derailment prevention safety plates for secure travel.
Safety & Maintenance: Includes a dedicated maintenance walkway along the main girder for safe and easy access.
Safety & Control Systems:
Our cranes are equipped with a comprehensive safety suite to protect both personnel and equipment:
Load Moment Indicator / Overload Limiter
Emergency Stop Buttons
Motor Overcurrent and Short-Circuit Protection
Phase Failure and Sequence Protection
Zero Position Interlock
Undervoltage Protection
Limit Switches for Crane and Trolley Travel
Upper and Lower Hoist Limit Switches
Design & Manufacturing Standards:
We adhere to stringent national and international standards to guarantee quality and safety, including but not limited to: GB/T10183-2005 (manufacturing & tolerances), GB/T5905-1986 (testing), JB/T4315-1997 (electrical controls), GB8918-2006 (wire ropes), GB/T700-2006 & GB/T1591-2008 (structural steel), and JB928-1994 / GB11345-1989 (weld inspection).
Installation & Project Support:
Henan Mine Crane Co., Ltd. provides complete material handling solutions, not just equipment. Our service begins with detailed technical documentation, including design schematics, manuals, wiring diagrams, and safety videos. We offer professional on-site installation supervision to ensure correct assembly.
Following installation, our technicians conduct thorough load testing as per standard procedures. We also provide comprehensive operator and maintenance team training, utilizing customized videos and presentations to ensure safe and efficient crane operation throughout its lifecycle.

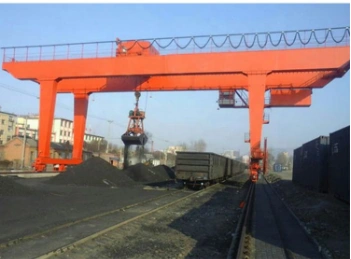

Our electric double girder rail travelling gantry crane, equipped with a specialized grab bucket, is engineered for heavy-duty, efficient material handling in challenging outdoor environments. It is the ideal solution for industries that manage large volumes of loose, bulk commodities.
Primary Use Cases:
Bulk Port and Intermodal Terminals: Accelerate the loading and unloading of vessels and railcars. The crane efficiently transfers materials like coal, iron ore, and aggregates between ships, trains, and stockpiles, ensuring rapid turnaround times.
Open-Air Storage and Stockpile Management: Master your inventory in outdoor yards. This gantry crane is perfect for stacking, reclaiming, and blending materials such as sand, gravel, limestone, and recycled metals, maximizing storage space and operational flow.
Power Generation and Cement Plant Logistics: Ensure a consistent and reliable fuel supply. The system excels at handling coal, biomass, and other raw materials for power plants, and is equally effective in moving clinker and gypsum in cement production facilities.
Metallurgical and Chemical Processing: Handle raw materials and by-products with strength and reliability. From transporting scrap metal to managing bulk chemicals and minerals, the crane's robust design stands up to demanding industrial conditions.
Primary Applications
This crane is perfectly suited for handling bulk solids in:
Scrap yards and recycling centers
Mining and mineral processing sites
Port terminals and shipping yards
Power plants (coal handling)
Aggregate and sand processing facilities
Large-scale agricultural storage and logistics
Why Our Grab Crane Excels in These Environments:
All-Weather Resilience: Built with superior corrosion protection and optional full-weatherization packages to operate reliably in rain, wind, and dust.
Precision Material Control: The grab bucket attachment allows for efficient scooping and placement of loose materials, minimizing spillage and waste.
Robust "A-Frame" Design: Provides exceptional stability and lifting capacity over long spans (typically 18-35m), essential for covering wide storage areas and rail lines.
Dual Control Flexibility: Operators can manage loads from the safety of an enclosed cab or via remote ground control, adapting to visibility and operational needs.
