The MH Series Electric Hoist Gantry Crane is a versatile, rail-mounted lifting solution engineered for light to medium-duty applications. Its primary structure integrates a mast system—comprising the main girder, outriggers, and lower cross beam—with a hoisting mechanism, travel system, and advanced electronic controls. Utilizing an electric hoist as the lifting component, the crane operates by traveling along the lower flange of I-beam girders.
Two structural designs are available: box-type and truss-type configurations. The box-type design offers superior manufacturing precision and structural integrity, while the truss-type construction reduces overall weight and provides enhanced wind resistance. Both types deliver benefits such as compact design, straightforward installation, and minimal maintenance requirements.

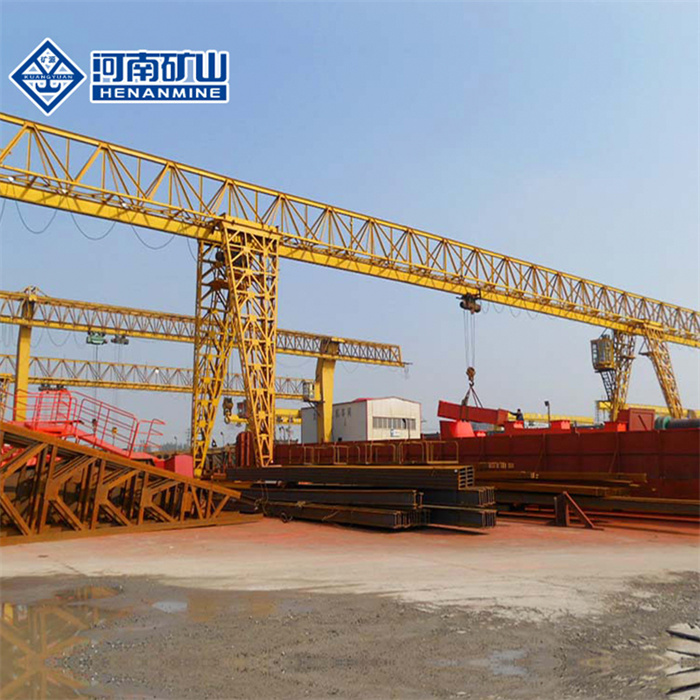

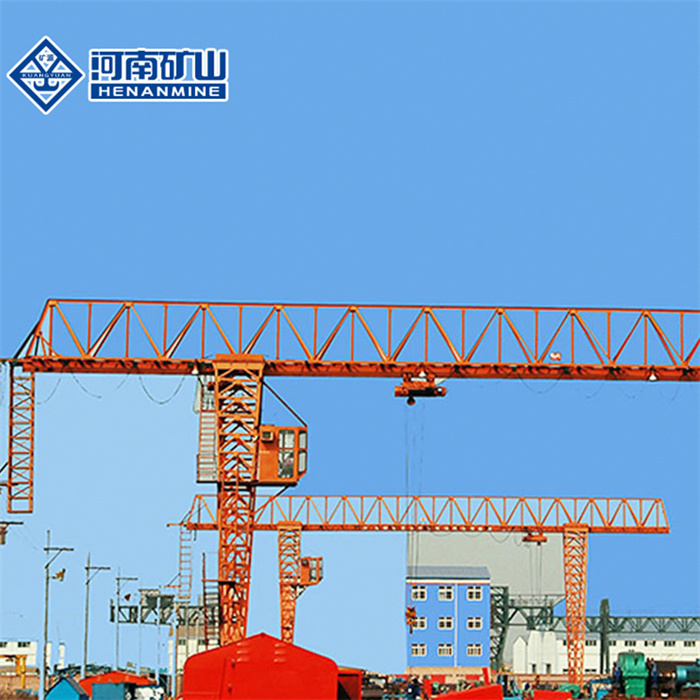

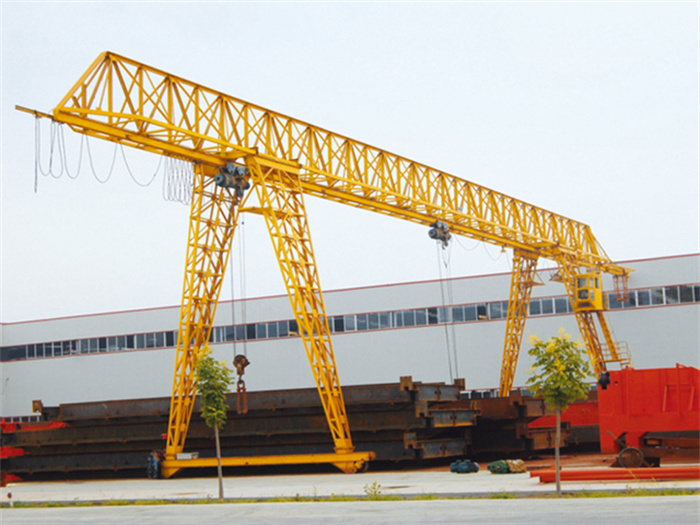

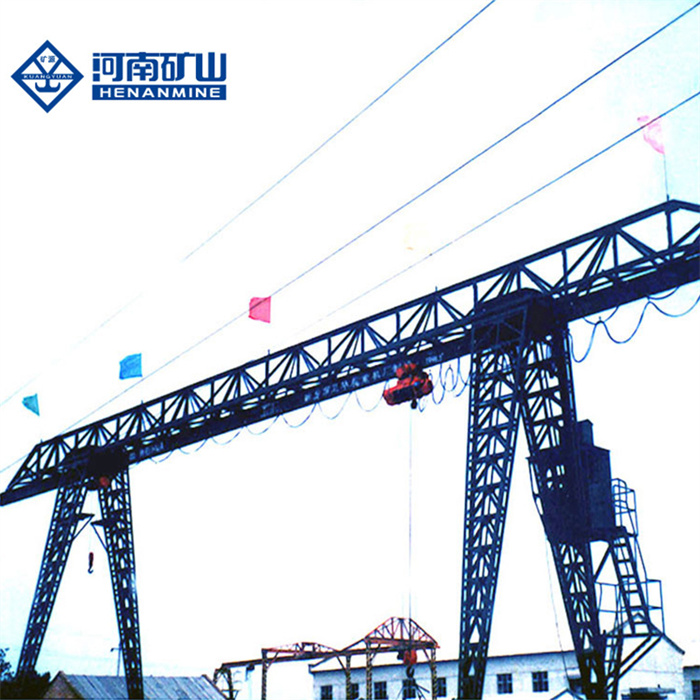

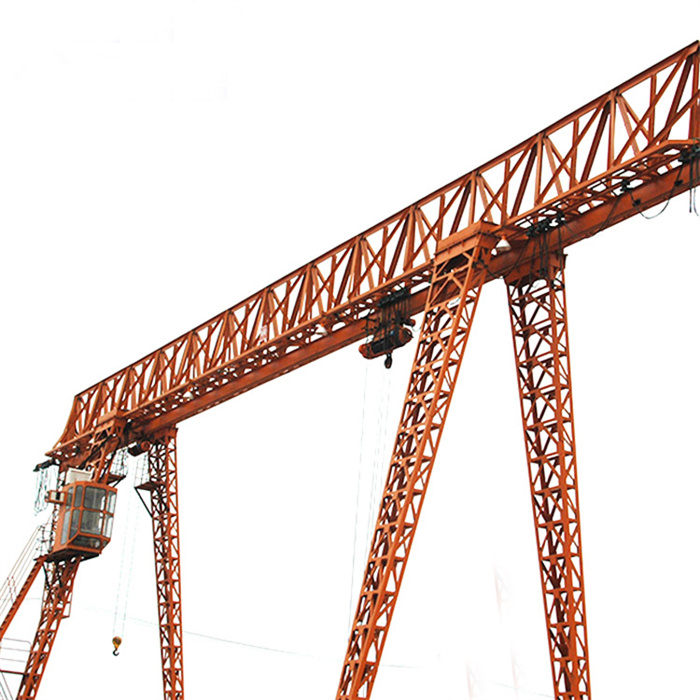

Ideal for outdoor or semi-outdoor settings—including factories, mining operations, freight yards, and storage warehouses—the MH truss-type gantry crane is commonly paired with CD or MD electric hoists. Its welded steel truss framework ensures lighter weight and improved stability in windy conditions. While the truss design offers cost efficiency and wind-resistant performance, it requires regular inspection of weld points due to inherent structural characteristics such as deflection and rigidity considerations.
Operation is flexible, with options for ground-based handle control, wireless remote, or cabin control. Power supply can be configured via cable reel or overhead sliding line systems.

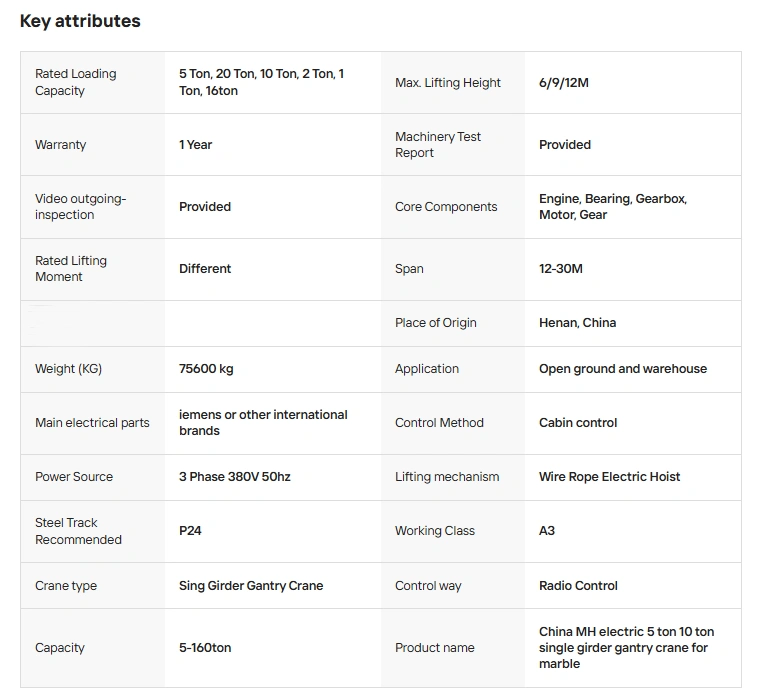

This crane series is widely applied in material handling, loading, and unloading tasks across open yards and warehouse facilities. It supports lifting capacities from 3 to 20 tons, with spans ranging from 12 to 30 meters, and operates effectively in temperatures from -20°C to +40°C.
1. Outdoor Storage & Freight Yards
In open-air environments like freight terminals and lumber yards, our crane excels. The truss-type design, known for its lightweight and superior wind resistance, ensures stable and secure operation even in exposed conditions. It efficiently manages the loading and unloading of raw materials, construction supplies, and packaged goods from trucks and storage piles, streamlining logistics in demanding outdoor spaces.
2. Manufacturing & Assembly Plants
Within factory settings, this gantry crane offers a flexible lifting solution without the need for an expensive overhead runway system. Its ability to operate along ground-level rails makes it ideal for moving components between workstations, handling machine parts, and supporting assembly processes. The choice of ground control or wireless remote operation allows for precise, safe maneuvering in congested production areas.
3. Warehouse & Distribution Centers
Maximize storage space and improve inventory flow with our versatile gantry crane. It is perfectly suited for handling palletized goods, machinery, and bulk items in warehouses with high ceilings. The flexible power options—either cable reel or sliding line—provide uninterrupted coverage across long spans, making it an essential tool for efficient loading, unloading, and order picking operations.
4. Mining & Bulk Material Handling
For sectors like mining and aggregate processing, this crane provides a durable solution for managing heavy, bulky materials. Its robust construction handles tasks like moving equipment, handling scrap, and loading ore or gravel. The crane's reliability in temperatures from -20°C to +40°C makes it a dependable asset in challenging industrial environments.
5. Maintenance Workshops & Repair Bays
Ideal for maintenance facilities, the crane simplifies the handling of engines, large vehicle components, and industrial machinery. The simple installation and minimal maintenance requirements mean you can deploy a powerful lifting solution quickly and with low ongoing costs, enhancing workshop productivity and safety.
Key Advantages for These Scenarios:
Adaptable Operation: Choose from ground handle, wireless remote, or cab control for optimal safety and efficiency.
Robust Design: The truss structure offers an excellent strength-to-weight ratio and performs reliably in windy, outdoor conditions.
Cost-Effective Solution: Provides the power of a permanent crane with the flexibility of a mobile system, offering significant value.
Equip your facility with the material handling flexibility it needs. Contact us today to find the perfect gantry crane solution for your specific application.
