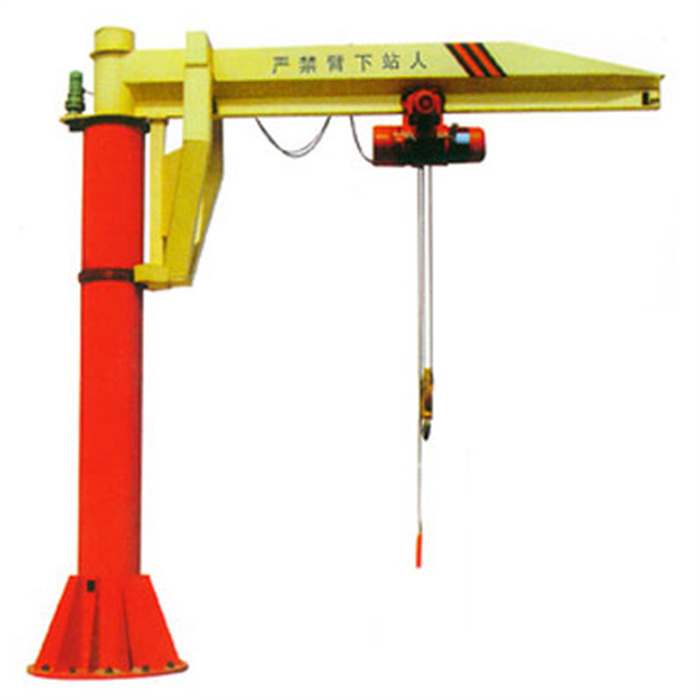

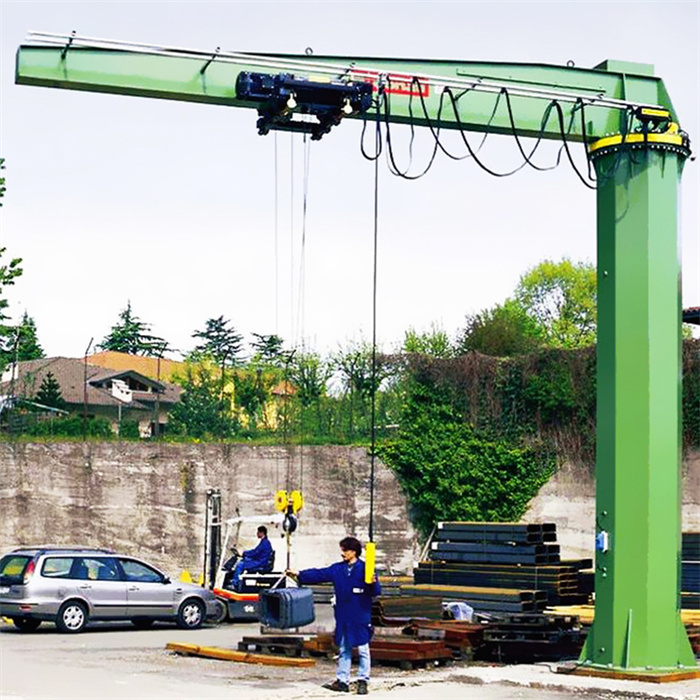

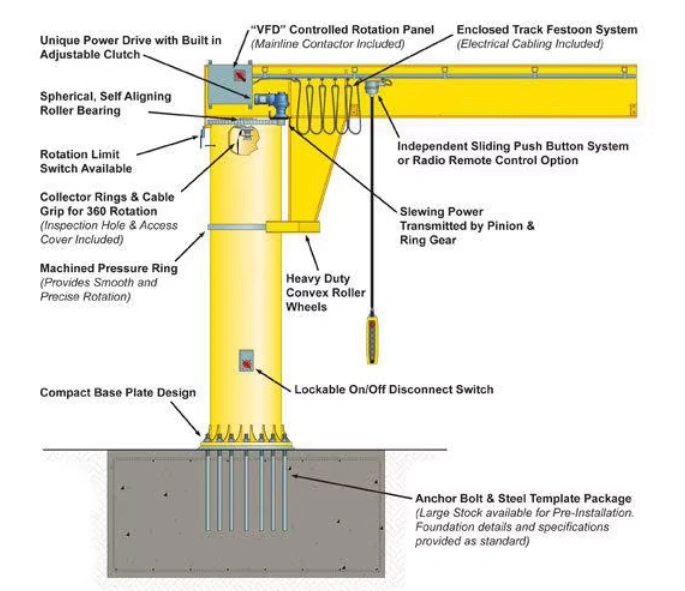

The Column Jib Crane is a versatile, self‑supported material handling solution designed for efficient lifting and load positioning in industrial workplaces where floor space is available for a central column but overhead crane coverage is limited or nonexistent. Unlike wall‑mounted jib cranes that rely on building walls, the column jib crane features a freestanding steel column (pillar) bolted to a concrete foundation. A rotating jib arm (boom) is attached to the top of the column, and an electric or manual hoist travels along the arm. The entire jib can rotate 180°, 270°, or 360°, covering a circular working area around the column.

1. Machine Tending & Workstation Lifting CNC Machine Loading/Unloading: Lifting raw material (bars, plates, castings) from floor pallets onto lathes, milling machines, or machining centers, then removing finished parts. Press Feeding: Lifting heavy metal blanks or stampings into a press die and extracting formed parts. Grinding & Deburring Stations: Positioning heavy workpieces onto grinders, deburring tables, or finishing stations.

2. Individual Workstations in Large Shops Isolated Work Cells: Serving a single workstation where an overhead crane would be too large or expensive. The column jib crane provides dedicated lifting without tying up a central crane. Welding Stations: Positioning heavy weldments or subassemblies for welding operations, then moving them to cooling or inspection areas. Quality Control & Inspection: Lifting heavy samples or finished products onto inspection tables, CMM machines, or test stands.

3. Maintenance & Repair Bays Engine & Transmission Overhaul: Lifting engines, transmissions, gearboxes, and differentials from vehicles or machinery for disassembly and repair. Pump & Motor Servicing: Handling large pumps, compressors, blowers, and electric motors in dedicated repair bays. Equipment Maintenance: Removing heavy components (rollers, shafts, drums) from production machines for servicing.

4. Warehouse & Storage Areas (Central Lifting Point) Pallet Handling: Lifting heavy pallets of goods from floor storage onto carts, conveyors, or trucks within a circular zone. Drum & IBC Lifting: Handling 200‑liter drums, IBC totes, and bulk bags for mixing, filling, or shipping. High‑Shelf Retrieval: Accessing pallets stored on racks around the column, using the jib’s rotation and trolley travel.

5. Metal Fabrication & Welding Shops Plate & Beam Positioning: Lifting steel plates, beams, channels, and tubes from floor stacks onto cutting tables (plasma, laser, shear) or welding positioners. Subassembly Movement: Transporting heavy fabricated subassemblies (frames, brackets, tanks) between workstations. Finished Product Handling: Lifting completed fabrications (hoppers, platforms, staircases) onto pallets or trucks.

6. Automotive Manufacturing & Assembly Plants Press Shop Support: Lifting and feeding steel coils to uncoilers; handling stamping dies for changeovers. Body Shop Subassembly: Lifting door assemblies, fenders, hoods, and chassis components to assembly lines. Powertrain Assembly: Lifting engine blocks, cylinder heads, transmission housings, and axle assemblies with precise positioning.
