The New Type LD Electric Single Girder Crane is a modern, lightweight overhead material handling solution developed by Henan Mine. As an advanced iteration of the traditional LD model, this crane is specifically engineered for general industrial applications requiring efficient lifting and transportation of light to medium loads.

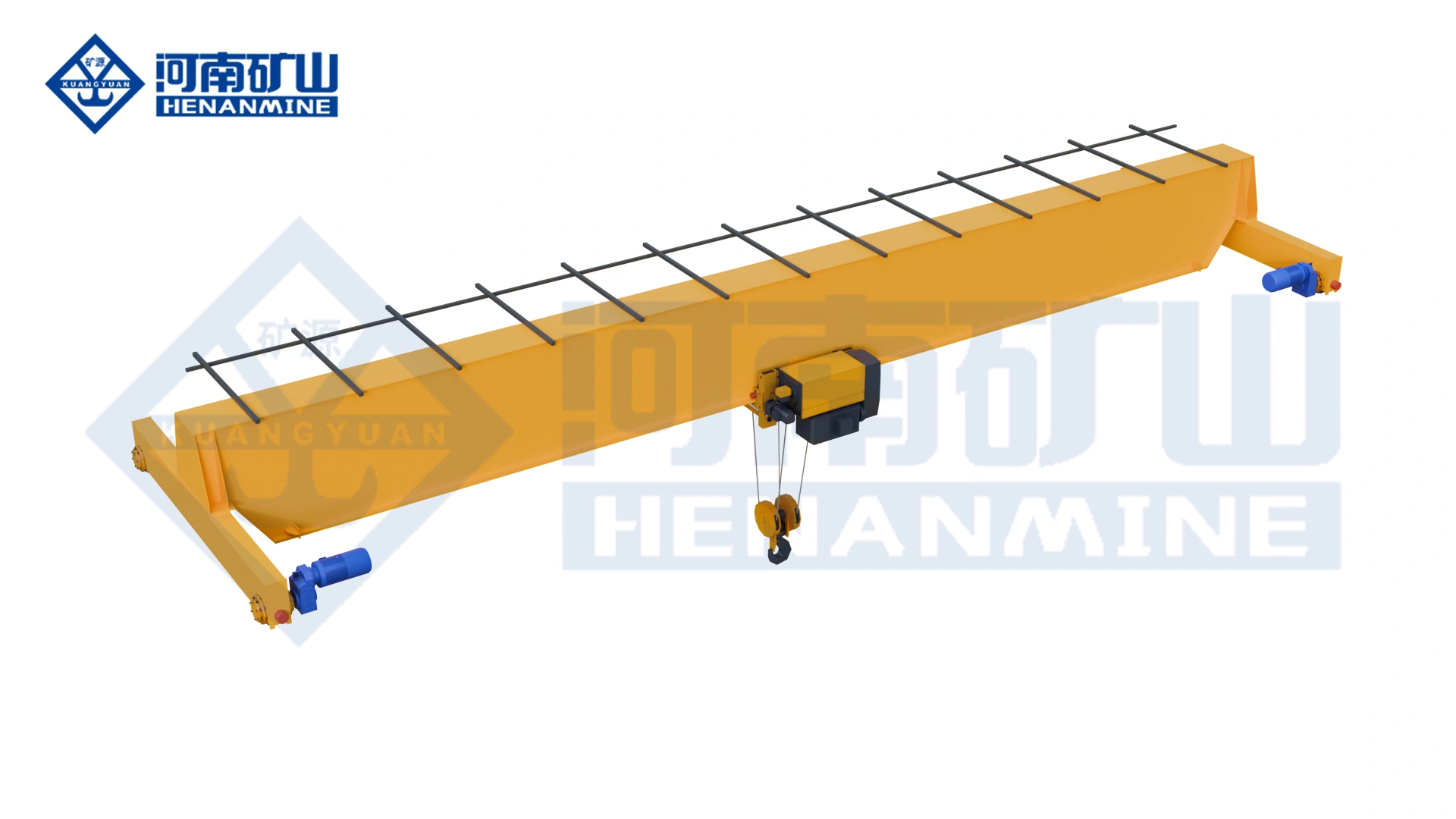

The crane features a compact single-girder bridge structure composed of a box-type or I-beam main girder, two end carriages, and an electric hoist (typically CD1 or MD1 type wire rope hoist) that travels along the lower flange of the main beam. The entire unit runs on overhead rails, providing smooth longitudinal movement across the workshop or warehouse.

The lifting mechanism is a new type of electric hoist, which can load, unload and transport materials and equipment in an intermittent and repetitive manner in general working environments. It has the functions of vertical lifting, longitudinal and lateral movement.

Widely applied in machinery manufacturing, assembly workshops, warehouses and logistics yards. Suitable for indoor general working environments with temperature from -25℃ to +40℃. Not for flammable, explosive or corrosive conditions.

Core Applications:
1.Manufacturing Workshops: Material transfer between production lines, assembly stations, and equipment installation
2.Warehouses & Logistics Centers: Loading, unloading, stacking, and retrieving finished goods and raw materials
3.Machining Shops: Handling metal workpieces, molds, and machined components
4.Steel Mill Auxiliary Areas: Serving as an economical lifting solution in support areas of steel plants
5.Light Industrial Facilities: Textile, food processing, and packaging industries for raw material and finished product handling
