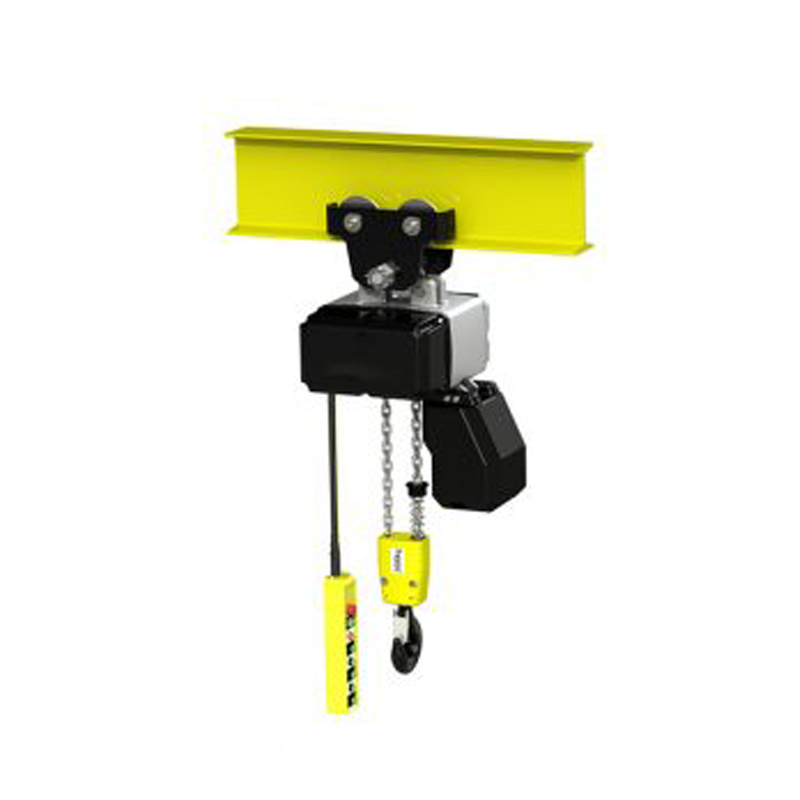

Top Sale Monorail Travelling Remote Wireless Control Chain Electric Hoist

Product introduction:

Chain hoist is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. Electric chain hoists are all produced in accordance with international standards, and all internal gears are quenched at high temperatures, which increases the wear resistance and toughness of the gears, and the gears fit closely.

Technical parameters：

 Mechanical Parts:

Chain bag: lightweight, beautiful and durable.

Reverse phase protection device: It is a special electrical device. When the power connection is wrong, the control circuit cannot operate.

Limit switch: The limit switch device is installed when the heavy object is hoisted up and down, which makes the motor stop automatically to prevent the chain from exceeding and ensure safety.

Chain: Imported FEC80 super heat-treated alloy steel chain.

Paramagnetic braking device: This device can realize instantaneous braking when the power is cut off.

24V/36V device: When the switch leaks during operation, it can prevent other accidents from happening.

Sheel: Light aluminum alloy shell, light and strong, high heat dissipation rate, fully sealed design, suitable for use in environments with poor operating conditions.

Safety System:

1.Motor brake

“Electromagnetic brake” is a unique brake design. Its characteristic is that even when the power is turned off under a full load, the brakes will act immediately.

2.Hook and fuse

The hook is forged with high tensile steel and is heat-treated to meet the requirements of load strength and hardness. The local dog can rotate 360° horizontally, and is equipped with a hook safety piece to ensure safety during take-off and landing.

3.Phase protection relay

The electric furnace design of the phase protection relay can protect and prevent the motor from burning out when the phase of the motor power supply is connected incorrectly.

4.Limit switch

The upper and lower limit switches can automatically cut off the power when the limit is exceeded during lifting and lowering to prevent the chain from exceeding and ensure safety.

5.Emergency stop switch (optional)

The second button is used to stop the electric hoist in an emergency. It is a red, mushroom-shaped button located at the top of the button switch. When the button is pressed, the power of the device will be cut off, and the button will be automatically locked. Rotate clockwise to release the button and restart the electric hoist.

Installation Service:

Crane installation service of Henan Mining Crane Co., Ltd.

Henan Mining Crane Co., Ltd. can not only provide electric chain hoists, but also electric chain hoists solutions. First, we will provide electric chain hoist design, electric chain hoist manual, electric chain hoist drawing, electric chain hoist wiring diagram, electric chain hoist electrical diagram and electric chain hoist crane safety video before or after delivery, Our technicians will supervise the installation according to the documents. Of course, customers can install it according to their own requirements.

After the installation is completed, our technicians will guide the load test according to the electric chain hoist load test procedure, and then conduct electric chain hoist operation training and electric chain hoist maintenance training. All procedures will follow the electric chain hoist training video and electric chain hoist training PowerPoint.

The cranes of Henan Mining Crane Machinery Co., Ltd. have won multiple honors in different electric chain hoist model certifications

If you want to know more about electric chain hoist, please go to the download center to find electric chain hoist accessories, electric chain hoist pdf, electric chain hoist catalog, and get the specifications of mobile electric chain hoist and electric chain hoist Regulation.
